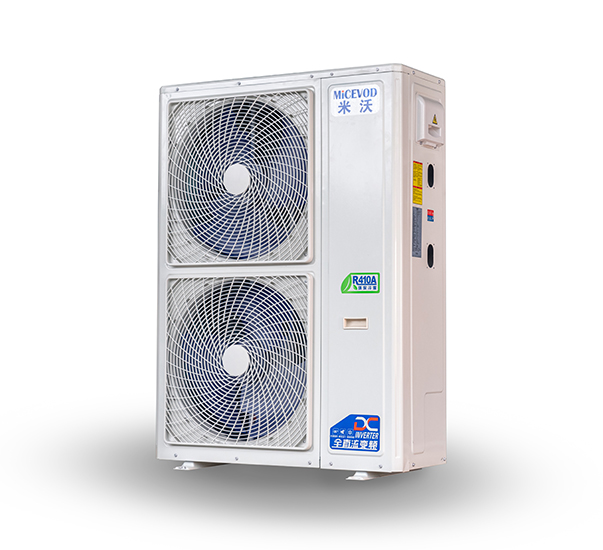

Household Water Machine

MHRD-16BNI/P2

FAST COOLING AND HEATING
Cooling within 60 seconds and heating within 100 seconds.
QUIET OPERATION
The unique air duct technology "Air Cube"makes unit runningwith low noise at 23 dB(A).
COMBINED WITHINDOOR DECORATION
With a slim height 185mm, the unit can be concealed installed insmall area
COMFORTABLE
Through a reasonable design of air outlet/inlet, the unit cansupply air to every space of room evenly.
AIR PURIFIER(OPTIONAL)
The device "air purifier" is optional, which can remove PM2.5effectively in the room and create a fresh life.
INTELLIGENT CONTROL(OPTIONAL)
The unit can realize several intelligent modes, such as wirelesscontrol, video monitoring, voice control and automatic air qualitysupervision.

PRODUCT DETAILS

Specification Parameter table

Model			MHRD-14BN1/P2	MHRD-16BN1/P2	MHRD-18BN1/P2
Source		V/Ph/Hz	220V~380V/50Hz
Cryogen			R410A R410A
Operating ambient temperature		℃	-35~52
Maximum outlet water temperature		℃	60
Rated heating	Heating capacity	Kw	14.00	16.00	18.20
	Input power	Kw	4.00	4.71	5.52
	COP	W/W	3.50	3.40	3.30
Nominal heating	Heating capacity	Kw	10.10	12.00	13.50
	Input power	Kw	4.04	4.94	5.82
	COP	W/W	2.50	2.43	2.32
Low-temperature heating	Heating capacity	Kw	9.80	11.00	12.00
	Input power	Kw	4.67	5.37	6.00
	COP	W/W	2.10	2.05	2.00
APF		W/W	3.04	3.02	3.00
HSPF	Effluent 41℃	W/W	3.00	2.98	2.97
IPLV(H)	Effluent 41℃	W/W	2.98	2.98	2.96
Rated refrigeration	Refrigeration capacity	Kw	12.20	13.80	14.50
	Input power	Kw	4.21	5.07	5.58
	COP	W/W	2.90	2.72	2.60
IPLV(C)		W/W	4.35	4.30	4.20
Discharge		m³/h	2.10	2.37	2.49
Inlet and outlet pipes		inch	1”Internal tooth
Water side resistance		kPa	22	26	28
Maximum current		A	22	27	29
Compressor type		g	DC variable frequency jet enthalpy increase（EVI）
Noise		dB(A)	≤58	≤59	≤59
Dimensions (length, width, height)		mm	9553601250
Weight		kg	120
