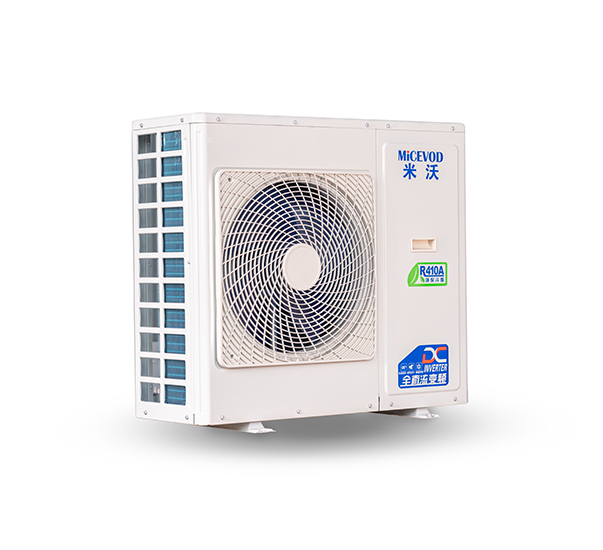

MHRD-10BN1/AP2
HEATING AT -20°C
Adopt patent technology of intelligent defrost and ultra lowtem-perature heat pump, the unit even heating at -20.( GR120/DHR)
COMBINED WITH INDOOR DECORATION
The unit is concealed installed and harmony with indoordec-oration style.
QUIET OPERATION
Adopt shock absorber design and sound insulation materials, which ensure the unit running with a low noise.
FRESH AIR
Convenient introduction of fresh air and it keeps the airfreshfor a long time to avoid air conditioning disease.
Two CONTROL MODES
Both wired controller (standard) and wireless remotecontroller (optional) are available.
MULTI POINTS SUPPLYING AIR
The biggest static pressure of air is up to 30Pa, so itcanconnect to longer pipe to achieve supplying air from multipoints.
Adopt patent technology of intelligent defrost and ultra lowtem-perature heat pump, the unit even heating at -20.( GR120/DHR)
COMBINED WITH INDOOR DECORATION
The unit is concealed installed and harmony with indoordec-oration style.
QUIET OPERATION
Adopt shock absorber design and sound insulation materials, which ensure the unit running with a low noise.
FRESH AIR
Convenient introduction of fresh air and it keeps the airfreshfor a long time to avoid air conditioning disease.
Two CONTROL MODES
Both wired controller (standard) and wireless remotecontroller (optional) are available.
MULTI POINTS SUPPLYING AIR
The biggest static pressure of air is up to 30Pa, so itcanconnect to longer pipe to achieve supplying air from multipoints.
PRODUCT DETAILS
Specification Parameter table
| Model | MHRD-10BN1/AP2 | ||
| Source | V/Ph/Hz | 220V~/50Hz | |
| Cryogen | R410A | ||
| Operating ambient temperature | ℃ | -35~52 | |
| Maximum outlet water temperature | ℃ | 60 | |
| Rated heating | Heating capacity | Kw | 10.00 |
| Input power | Kw | 2.94 | |
| COP | W/W | 3.40 | |
| Nominal heating | Heating capacity | Kw | 6.50 |
| Input power | Kw | 2.71 | |
| COP | W/W | 2.40 | |
| Low-temperature heating | Heating capacity | Kw | 5.50 |
| Input power | Kw | 2.68 | |
| COP | W/W | 2.05 | |
| APF | W/W | 3.05 | |
| HSPF | Effluent 41℃ | W/W | 3.02 |
| IPLV(H) | Effluent 41℃ | W/W | 2.98 |
| Rated refrigeration | Refrigeration capacity | Kw | 7.50 |
| Input power | Kw | 2.60 | |
| COP | W/W | 2.88 | |
| IPLV(C) | W/W | 4.20 | |
| Discharge | m³/h | 1.30 | |
| Inlet and outlet pipes | inch | 1”Internal tooth | |
| Water side resistance | kPa | 18 | |
| Maximum current | A | 18 | |
| Compressor type | g | DC variable frequency jet enthalpy increase（EVI） | |
| Noise | dB(A) | ≤56 | |
| Dimensions (length, width, height) | mm | 955x360x855 | |
| Weight | kg | 80 | |
